Aquozu is a tube expansion machine which expands tubes by ultra-high pressured water and servomotor is installed as a driving source. Ultra-high pressured water works inside a tube and this makes the tube fixing to the tube sheet by a plastic deformation. This machine is suitable for thick and/or long tube expansion.
Tube Outer Diameter 10-46mm

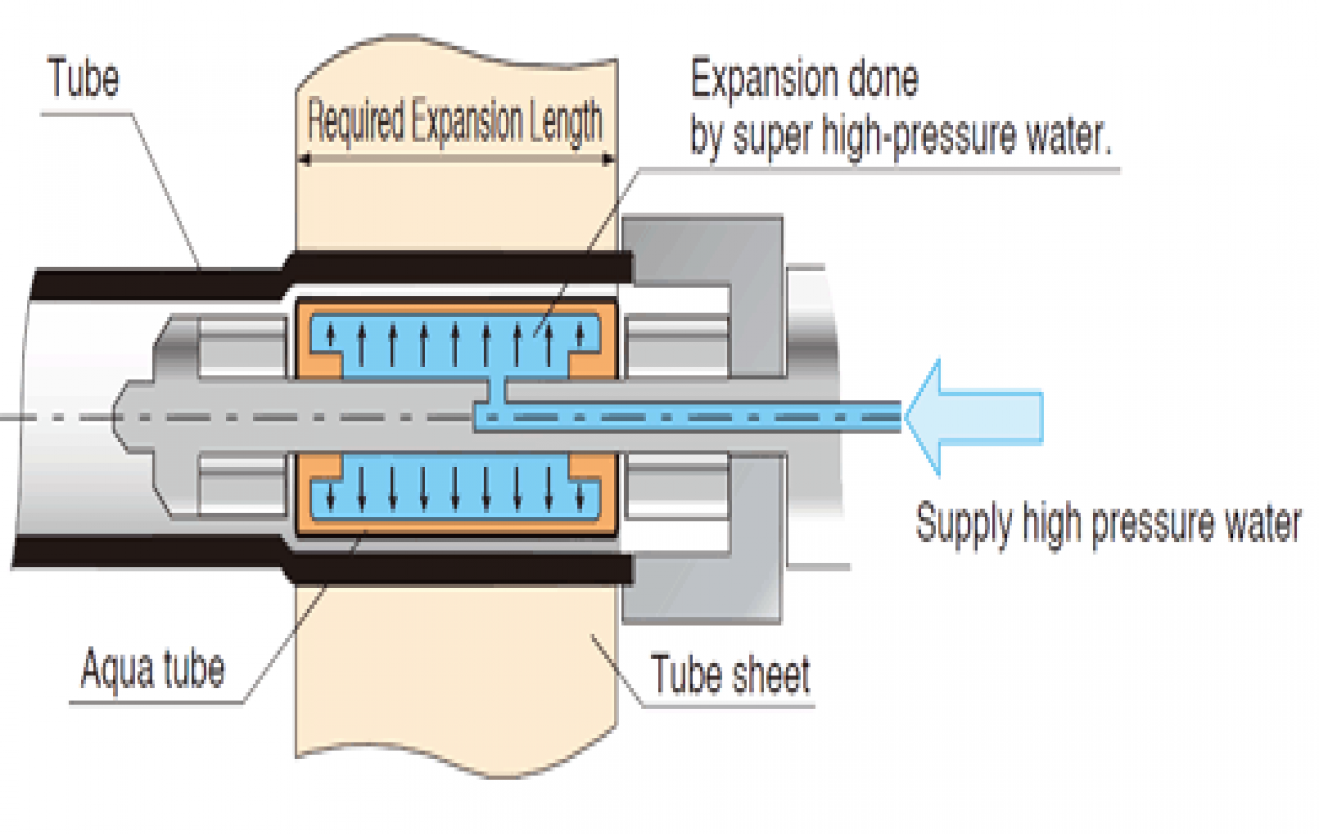

Ultra-high pressure water acts on the aqua tube to expand the tube.
1. Environment Friendly : Water-assisted, clean, environment-friendly tube expansion.
Work environment improved with oil leak-free servomotor.
2. Economical : With its ability to expand 800mm in a single expansion, Aqua Setter Eco greatly reduce the expansion time and total cost.
generated.in thickness.
3. Easy Operation : Even thick tube can be expanded at your fingertips.
Foolproof equipment with touch-screen system.
4. Safety : As no resistance force is generating during expansion, it improves
safety of operation.
5. Improve Quality : No tube deformation and tube inner diameter hardening/flaking is generated.
