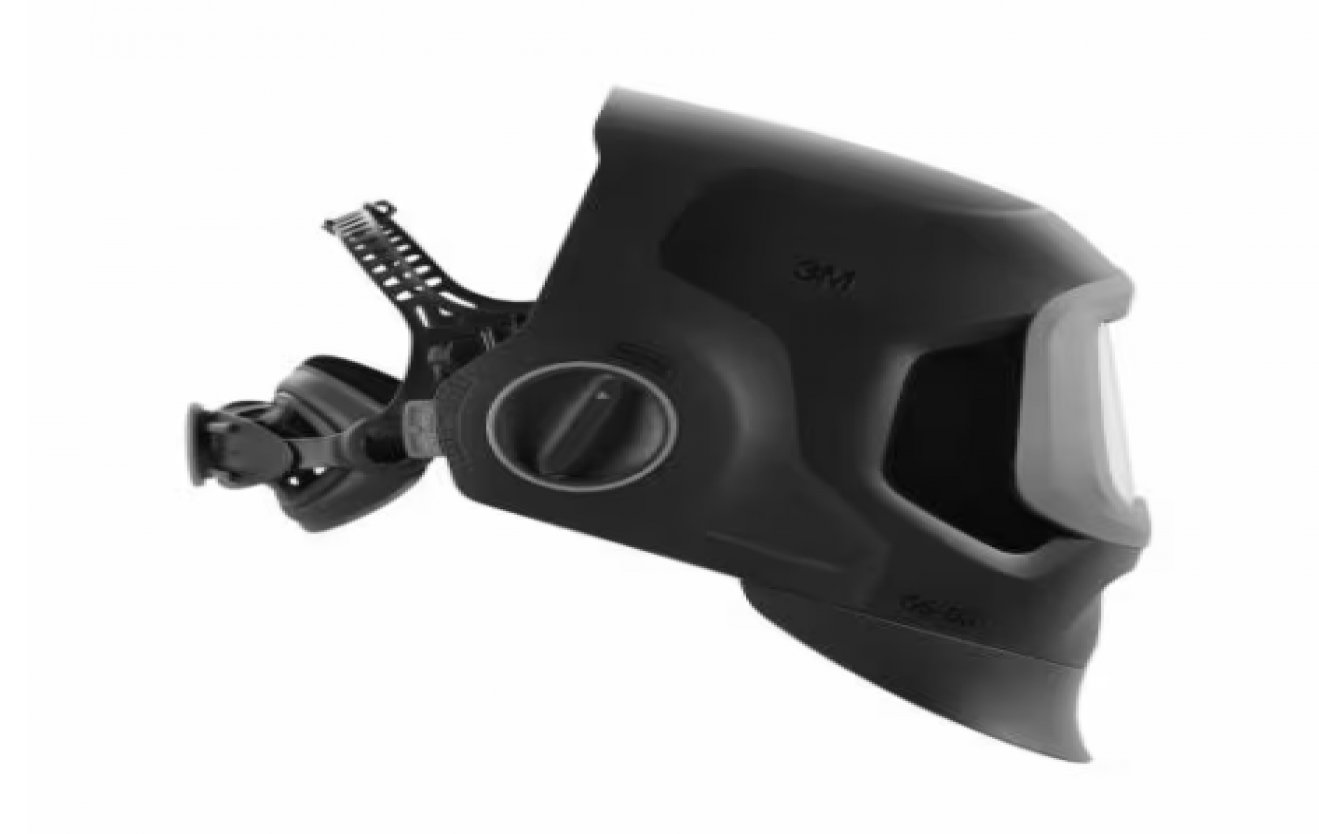

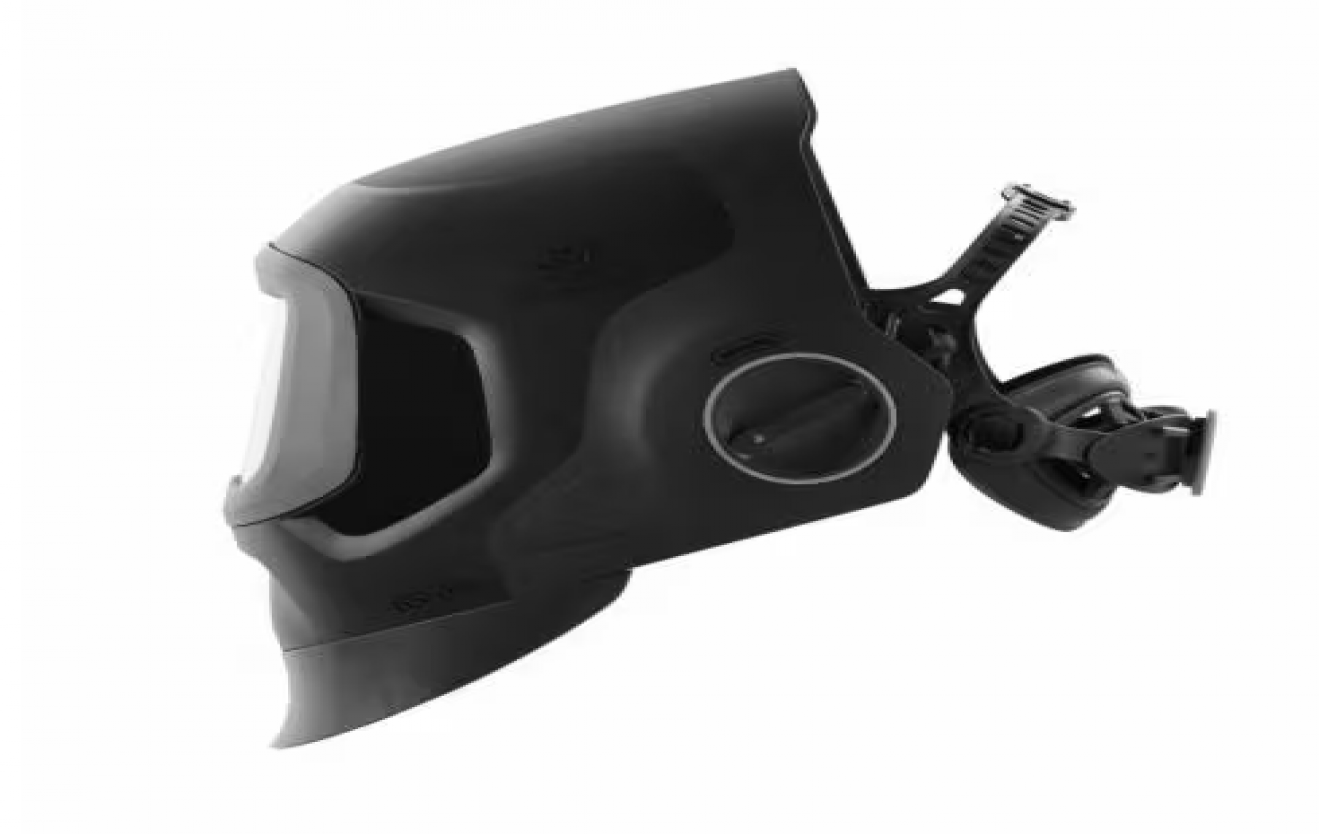

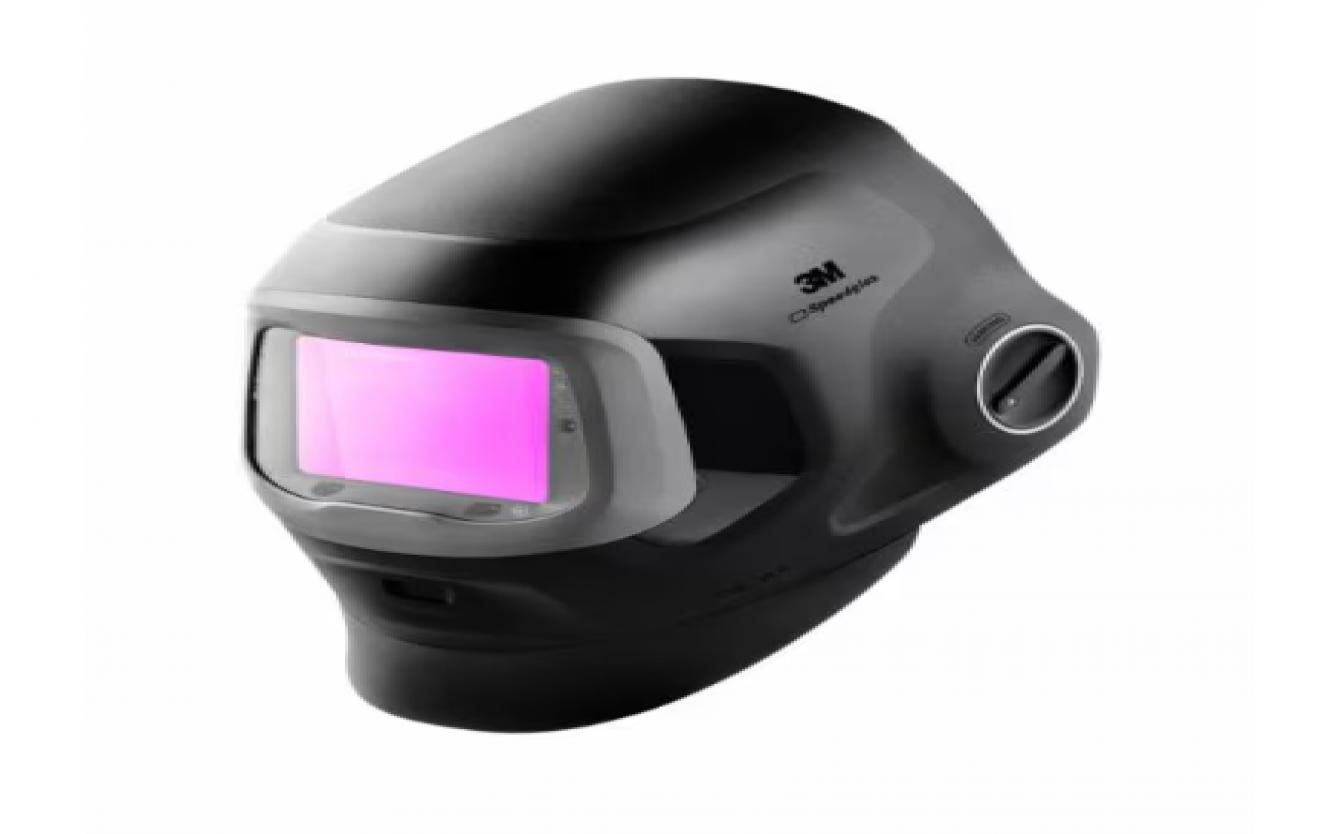

The 3M™ Speedglas™ G5-03 Pro Welding Helmet uses next-generation technology to help provide dynamic welding protection. Intuitively designed for the challenges faced on the job, this helmet setup includes a haptic function. Just tap 3 times anywhere on either side of the helmet to activate grind or cut mode. We make use of the welding technology of the future, today — equip the 3M™ Speedglas™ G5-03 Pro Welding Helmet with various accessories, such as task-light, neck cover and head cover to configure the helmet to meet your specific needs.
3M™ Speedglas™ Welding Helmet, G5-03 Pro is specifically designed for the versatile welder. The helmet allows you to switch between welding and grinding tasks through our new Tap functionality. With highly customisable adjustment settings, including more control over how you see your weld pool and how you configure the helmet for additional protection against radiation, sparks and spatter, G5-03 Pro allows you to take control over your protection. Features 3M™ Speedglas™ Natural Color Technology, Variable Color Technology (with G5-01/03VC), and a Tack Welding Mode (with G5-01/03TW). The new optional Task Light also allows you to see more of your work piece. an optional helmet adapter system also enables the connection of a hard hat for welders requiring head protection.
Details
|
ADF Technology |
Tack Weld Mode |
|
Auto-Darkening Filter (ADF) Model |
G5-01/03TW |
|
Battery Life |
ADF up to 2000 hours |
|
Battery Type |
Lithium 3 Volt |
|
Brands |
3M |
|
Case Quantity |
1 |
|
Comes with Auto-Darkening Filter (ADF) |
Yes |
|
Environmental Conditions |
Metalworking environments |
|
Features |
Advanced Headgear |
|
Front Panel Included |
Yes |
|
Graphic Theme |
Black |
|
Grinding Option |
ADF with Grind Mode |
|
Headband Included |
Yes |
|
Headgear Type |
Helmet with Faceshield and Welding Shield, Welding Helmet (with Auto-Darkening Filter) |
|
Includes |
Non pertinent |
|
Lens Shade |
5, 8 - 13 |
|
Lens Type |
Natural Color (NC) |
|
Material |
Polyamide |
|
Number of Sensors |
4 |
|
Product Color |
Black |
|
Product Series |
G5 |
|
Recommended Application |
Welding |
|
Recommended Industry |
General Manufacturing |
|
Side Windows |
Yes |
|
Specifications Met |
EN 166, EN 175, EN 379 |
|
Suspension Model |
G5 |
|
Switching Time |
50-1300 ms |
|
Switching Time (Light-Dark) |
0.1 ms @ 73°F (23°C) |
|
UV/IR Protection |
Shade 13 (permanent) |
|
Welding |
Yes |
|
Welding Filter Number |
3M™ Speedglas™ Welding Filter G5-01TW |
|
Welding Process |
Most type of arc welding including low amp TIG, plasma (welding and cutting), tack welding and grinding |
Dimensions and Classifications
|
ADF Viewing Area (Metric) |
71 mm x 108 mm |
|
Net Weight (Metric) |
615 g |
